HK-1｜Push Spoon Distance Adjustment

    The hydraulic oil in the machine will slowly deplete, resulting in the spoon not being pushed out to a sufficient distance. In order to maintain the high quality of the cigarettes, the spoon needs to be properly adjusted by adjusting screws.

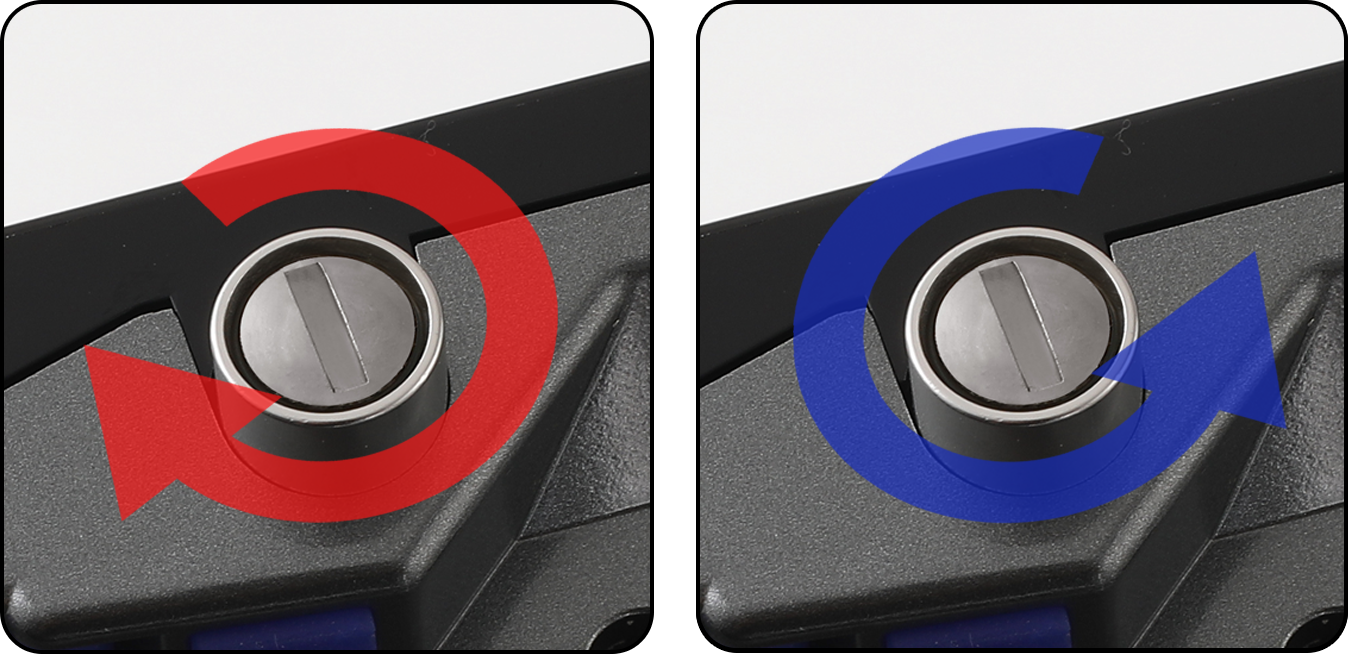

    Turning the adjustment screw one turn can extend or shorten the pushing distance of the spoon by 3.5mm. Clockwise rotation will extend, while counterclockwise rotation will shorten.

    In the case of hydraulic oil loss, we extend the pushing distance of the push spoon by turning it clockwise.

    After adjustment, switch to manual reset mode, press the lever to keep the spoon out, and check if it has been adjusted to the standard distance.

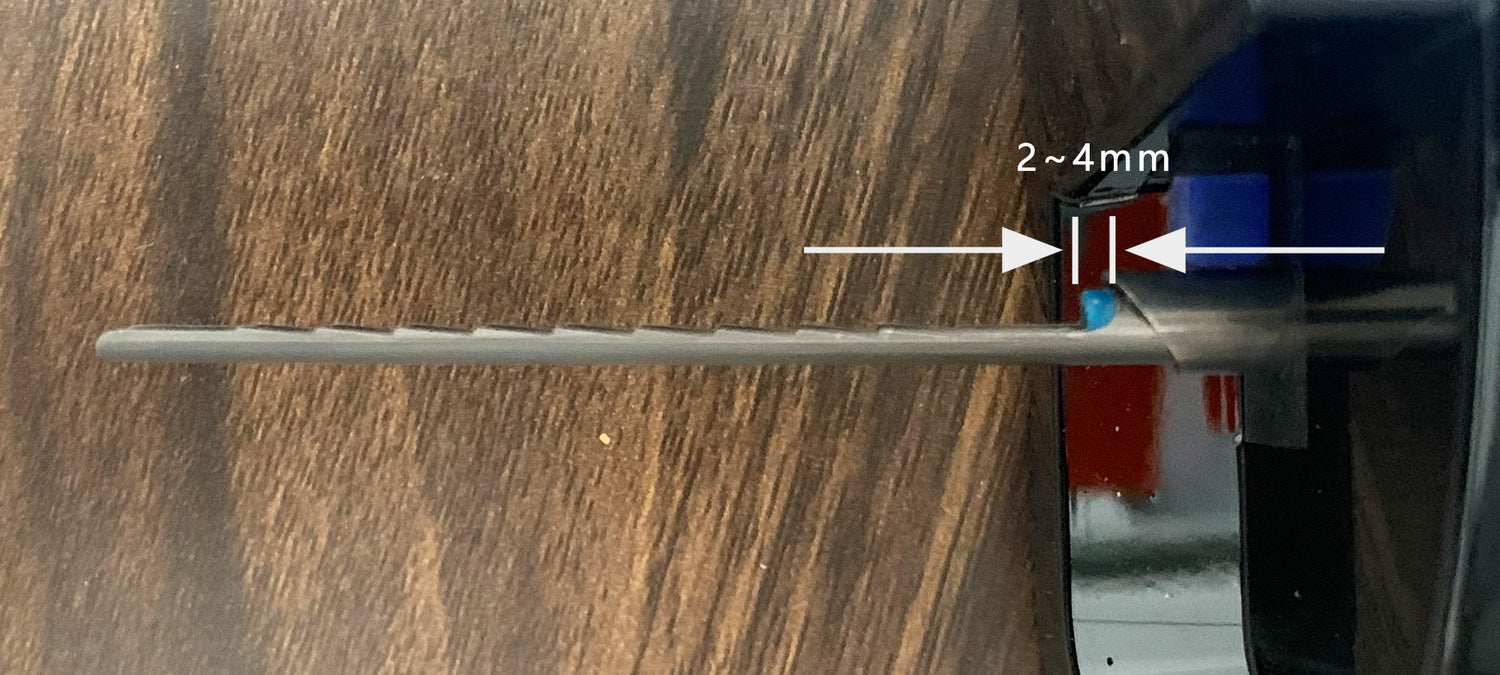

    The standard distance is that the root of the spoon exceeds the nozzle by 2~4mm.

    • Note：

      1. Do not over adjust. If the pushing spoon extends too far, it will not be able to reset and the machine will not function properly.

      2. If the adjusting screw has been turned clockwise to the end, the distance of the spoon pushing out is still not enough, the hydraulic oil needs to be replenished.
